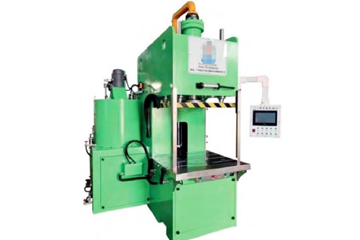

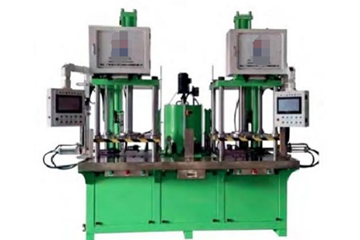

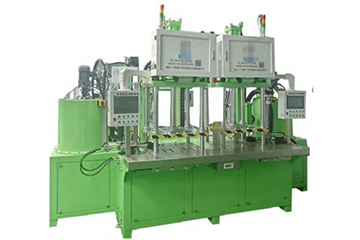

温州卧式自动射蜡机(16T)
设备名称：卧式自动温州射蜡机(16T)
设备编号：TQ-8003
设备简介：
1.传统蜡缸式免换蜡缸式之改良机种，再配备蜡温均匀，出蜡稳定之供蜡系统(1对1)。
2.不锈钢水箱2个。
3.附有自动喷模装置(自动喷头4个)。
4.储蜡桶除了保温蜡外，还提供热煤油给供蜡系统用，不但节省电费，还可因为热煤油有流动减少积碳，特殊热煤 油回路设计，蜡均温性达90%。
5.射蜡机操作系统简单明了，所有参数设置匀为数字式。
6.三段温度控制蜡温。
7.射蜡压力为三段压力，解决产品凹陷问题。
8. 蜡桶储蜡量大为200L。
9.蜡桶配有超温脱扣开关，防止超温引发火灾。
10.合模行程采用快、慢速装置，提高生产效率。
1.An improved model of the traditional wax-cylinder- free wax-cylinder type,equipped with a wax supply system with uniform wax temperature and stable wax output(1to 1)
2.2 stainless steel water tanks
3.With automatic injection molding device(4automatic nozzles)
4.In addition to the thermal insulation wax,the wax storage barrel also provides hot kerosene for the wax system,which not only saves electricity costs but also reduces carbon deposition because of the flow of hot kerosene.The special hot kerosene circuit design makes the average temperature of the wax reach90%.
5.The operation system of wax injection machine is simple and clear,and all parameters are uniformly set to digital
6.Second stage temperature control wax temperature
7.The wax injection pressure is a three-stage pressure to solve the problem of product depression
8.The wax storage capacity of wax bucket is 200L
9.The wax bucket is equipped with an overtemperature trip switch to prevent overtemperature from causing fire.
10.The clamping stroke adopts fast and slow devices to improve production efficiency.
参数配置：
基本参数Basic parameters | ||
| 合模压力Clamping pressure | 16T |
合模缸径Mold closing cylinder diameter | φ140 | |
压板尺寸Pressing plate size | 505*655*45(mm) | |
置模下板尺寸Dimension of lower plate for mold setting | 545*690*60(mm) | |
合模行程Clamping stroke | ST500mm | |
最大开距Maximum opening distance | 500mm | |
最小开距Minimum opening distance | 80mm | |
置模宽度(左右)Mold setting width(Left and right) | 550mm | |
置模深度(前后)Mold setting depth(Before and after) | 500mm | |
液压部分 Hydraulic part | 液压泵流量及压力Flow and pressure of hydraulic pump | 40L/140KG |
液压电机Hydraulic motor | 3.75KW | |
液压油型号Hydraulic oil model | 68# | |
电磁阀Solenoid valve | 台湾Taiwan | |
油泵0il pump | 台湾Taiwan | |
射蜡部分 Wax injection Dart | 挤蜡动作Wax squeezing action | 二段式Two-stage type |
挤蜡压力Wax extrusion pressure | 5~60KG | |
一次最大射蜡量Maximum wax injection amount at one time | 4.5L | |
射蜡流量Wax injection flow | 0-0.5L/S | |
储蜡桶容积Volume of wax storage barrel | 200L | |
储蜡桶加热功率Heating power of wax storage barrel | 2*2KW(4KW) | |
储蜡桶加蜡方式Wax filing method of wax storage barrel | 手动/自动Manual/Automatic | |
射嘴孔径Nozzle aperture | c6.8mm | |
蜡温控制精度Wax temperature control accuracy | 正/负0.1℃ Positive/negative 0.1℃ | |
抽蜡油缸缸径Diameter of wax extraction cylinder | φ80mm | |
抽蜡油缸轴径Diameter of wax extraction cylinder shaft | φ40mm | |
抽蜡缸缸径Diameter of wax extraction cylinder | φ63mm | |
抽蜡缸轴径Diameter of wax extraction cylinder shaft | φ40mm | |
挤蜡油缸缸径Cylinder diameter of wax squeeze cylinder | φ125mm | |
挤蜡油缸轴径Diameter ofwax squeeze cylinder shaft | φ60mm | |
挤蜡缸活塞直径Diameter of wax squeeze cylinder piston | φ125mm | |
挤蜡缸缸径Diameter of wax squeeze cylinder | φ125mm | |
射嘴上下调整距离Up and down adjustment distance of nozzle | 250mm | |
射嘴进退调整距离Adjustment distance of nozzle advance and retreat | 230mm | |
射嘴左右调整距离Left and right adjustment distance of nozzle | 200mm | |
射嘴到压板中心距Center distance from nozzle to pressing plate | 最短Minimum50mm | |
